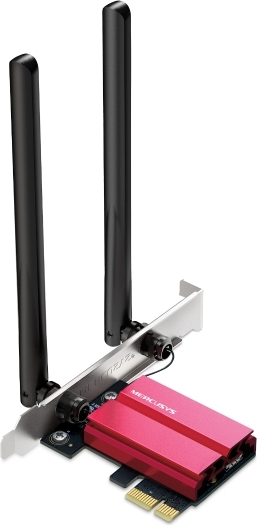

Mercusys MA86XE AXE5400 Tri-Band WiFi 6E BT PCIe

Popis produktu

Mercusys MA86XE

AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

Functions

Unstoppable Tri-Band Speed

*Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

WiFi 6E Standard

*Expand to the clearer, broader 6 GHz band

Wider Signal Coverage

*Two high-performance antennas

Bluetooth 5.3

*The latest Bluetooth technology achieves faster speeds and broader coverage

Improved Security

*The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Backward Compatibility

*Full support for 802.11ax/ac/a/b/g/n standards

Windows Compatible

*Supported operating system: Windows 10, 11 (64 bit), and currently 6 GHz Band only supported on Windows 11.

Specifications

Wireless

Wireless Standards

*IEEE 802.11 a/n/ac/ax 5 GHz

*IEEE 802.11 b/g/n/ax 2.4 GHz

WiFi Speeds

*2402 Mbps on 6 GHz

*2402 Mbps on 5 GHz

*574 Mbps on 2.4 GHz

Reception Sensitivity

6 GHz:

*11ax HE160 MCS0:-86 dBm

*11ax HE160 MCS11:-56 dBm

5 GHz:

*11ax HE80 MCS0: -90 dBm

*11ax HE80 MCS11: -59 dBm

*11a 54Mbps: -77 dBm

*11ac VHT80 MCS0: -92dBm

*11ac VHT80 MCS9: -64dBm

2.4 GHz:

*11ax HE40 MCS0: -91 dBm

*11ax HE40 MCS11: -60 dBm

*11g 54Mbps: -76 dBm

*11n HT40 MCS7: -72dBm

Wireless Security

*WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions

*930 × 4.8 × 0.85 in (228 × 120.8 × 21.5 mm)

Antenna Type

*2× Fixed High-Performance Omni-Directional Antennas
